开发文档

跨境电商Shopline平台对接SendCloud开发文档。
后端技术栈：Java Springboot +Mysql
前端技术栈：Html+Vue.js

名词

Shopline

全球跨境电商建站平台。 Shopline官网 (opens new window) 开发文档 (opens new window)

SendCloud

航运自动化平台。使用单一 API (RESTful) 向任何商店、WMS、ERP 或市场添加完整的运输功能，而无需担心个别承运人的要求和更新。 SendCloud官网 (opens new window)开发文档 (opens new window)

用例

1. 用户用电脑在Shopline后台，使用SendCloud应用对订单进行物流发货
2. 用户用电脑在Shopline后台，使用SendCloud 应用获取订单物流状态。
3. 用户用电脑在Shopline后台，使用SendCloud 应用对订单进行物流退货。
4. 用户用电脑在Shopline后台，使用SendCloud 应用计算订单物流运费。

开发规划

规划	开发内容	时间
一期	物流发货、物流状态获取	2023-02 至 2023-03
二期	物流退货、计算订单物流运费	时间待定

业务流程

原型地址

原型地址 (opens new window) 请查看《SendCloud》，访问密码：888

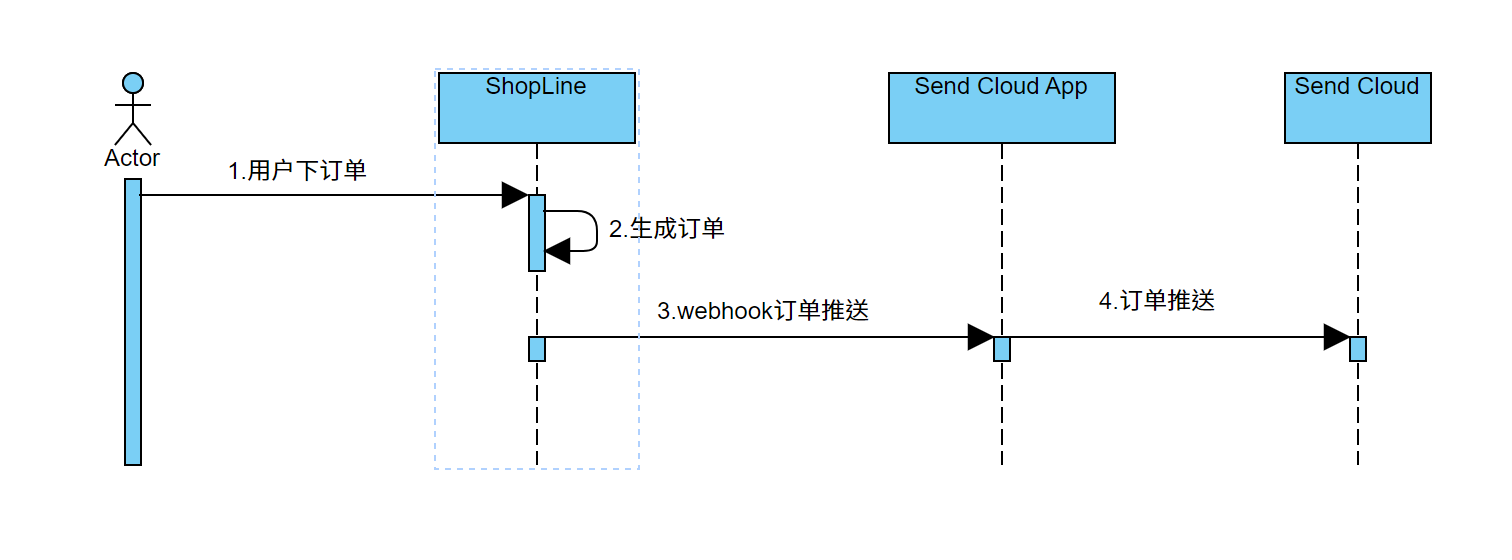

流程

安装配置流程、订单物流发货流程、获取订单物流状态

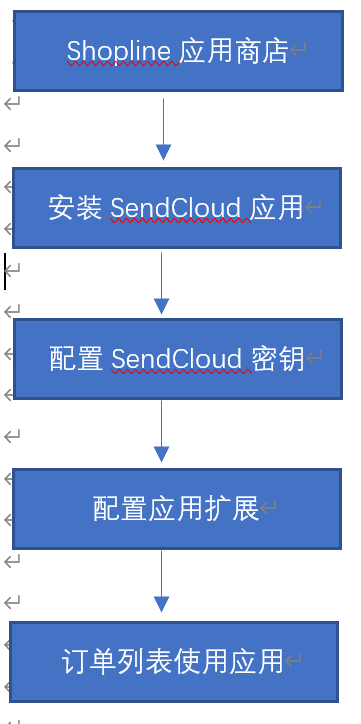

安装配置流程

用户在shopline平台安装sendcloud应用后，需要按照下面流程进行配置

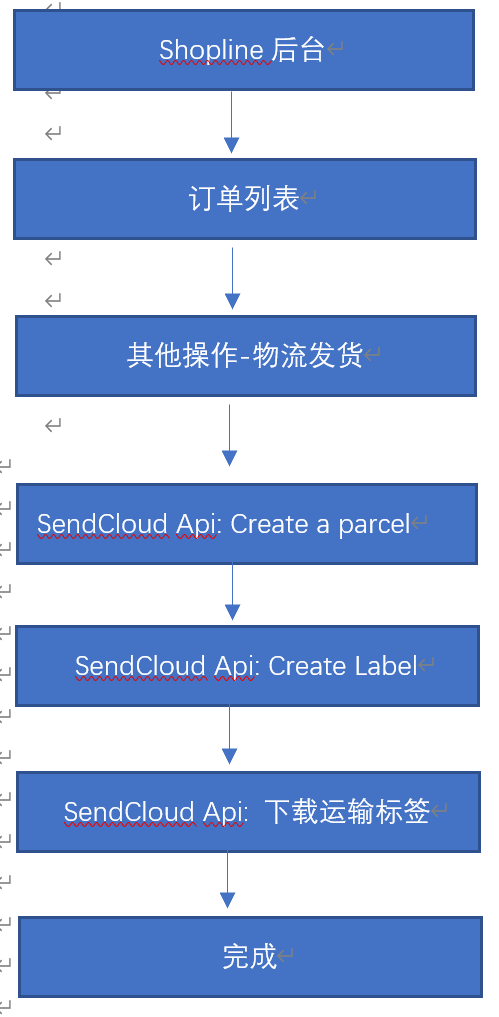

订单物流发货

使用sendcloud接口创建物流包裹

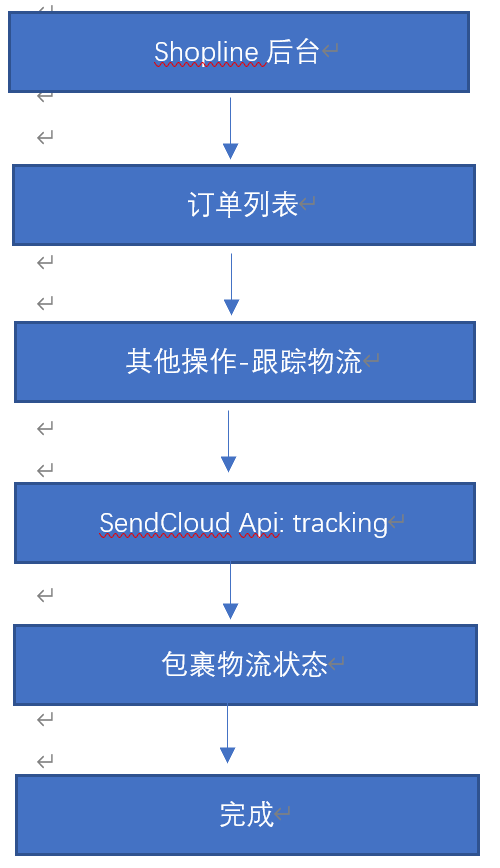

获取订单物流状态

使用sendcloud接口获取物流包裹状态

Api 接口

parcels

Api功能：创建一个运输包裹 Create a parcel (opens new window)。
Api请求方式：post
Api地址：https://panel.sendcloud.sc/api/v2/parcels
Api参数：

{

  "parcel":
    {
            "name": "John Doe",
            "company_name": "FlowerShop",
            "email": "john@doe.com",
            "telephone": "+31611223344",
            "address": "Fürstenrieder Str.",
            "house_number": "70",
            "address_2": "",
            "city": "Munich",
            "country": "DE",
            "postal_code": "80686",
            "country_state": null,
            "integration_id": 116118,
            "to_service_point": 10168633,
            "to_post_number": 262373726,
            "customs_invoice_nr": "",
            "customs_shipment_type": null,
            "parcel_items":
            [
                {
                    "description": "T-Shirt",
                    "hs_code": "6109",
                    "origin_country": "SE",
                    "product_id": "898678671",
                    "properties":
                    {
                        "color": "Blue",
                        "size": "Medium"
                    },
                    "quantity": 2,
                    "sku": "TST-OD2019-B620",
                    "value": "19.95",
                    "weight": "0.9"
                },
                {
                    "description": "Laptop",
                    "hs_code": "84713010",
                    "origin_country": "DE",
                    "product_id": "5756464758",
                    "properties":
                    {
                        "color": "Black",
                        "internal_storage": "2TB"
                    },
                    "quantity": 1,
                    "sku": "LT-PN2020-B23",
                    "value": "876.97",
                    "weight": "1.69"
                }
            ],
            "weight": "3.49",
            "length": "31.5",
            "width": "27.2",
            "height": "12.7",
            "total_order_value": "896.92",
            "total_order_value_currency": "EUR",
            "shipment":
            {
                "id": 1316,
                "name": "DHL Parcel Connect 2-5kg to ParcelShop"
            },
            "shipping_method_checkout_name": "Battery WarehouseX DHL",
            "sender_address": 1,
            "quantity": 1,
            "total_insured_value": 0,
            "is_return": false,
            "request_label": false,
            "apply_shipping_rules": false,
            "request_label_async": false
        }
}

字段映射：

SendCloud	Shopline	备注
name	name
company_name	company
email	customer.email
telephone	customer.phone
address	addresses.address1
house_number
address_2	addresses.address2
city	addresses.city
country	addresses.country
postal_code	addresses.zip
country_state	addresses.country
integration_id
to_service_point
to_post_number
customs_invoice_nr
customs_shipment_type
parcel_items	[]
weight	total_weight
length
width
height
total_order_value
total_order_value_currency	currency
shipment	{}
shipping_method_checkout_name
sender_address
quantity
total_insured_value
is_return
request_label
apply_shipping_rules
request_label_async

parcel_items 字段映射：

SendCloud	Shopline	备注
description	fulfillments.line_items[i].name
hs_code	fulfillments.line_items[i].id
origin_country
product_id	fulfillments.line_items[i].product_id
properties	[]
quantity	fulfillments.line_items[i].quantity
sku	fulfillments.line_items[i].sku
value
weight	fulfillments.line_items[i].grams

properties 字段映射：

SendCloud	Shopline	备注
color	fulfillments.line_items[i].attribute
size	fulfillments.line_items[i].attribute

Create the shipping label

Api功能：创建包裹物流标签
Api请求方式：put
Api地址：https://panel.sendcloud.sc/api/v2/parcels
Api参数:

{
    "parcel":
    {
        "id": 1,
        "request_label": true,
        "name": "Mr Test",
        "shipment":
        {
            "id": 8,
            "name": "unstamped letter"
        }
    }
}

Download the shipping label

Api功能：下载创建的物流标签，用户可打印。PDF格式。普通打印机提供A4尺寸，标签打印机提供A6尺寸。
Api请求方式：GET
Api请求地址：https://panel.sendcloud.sc/api/v2/labels/normal_printer/1?start_from=0

Tracking parcels

Api功能：跟踪物流包裹最新物流状态。
Api请求方式：Get
Api地址：https://panel.sendcloud.sc/api/v2/tracking/JVGL06097547000198007881
Api参数：tracking_number
